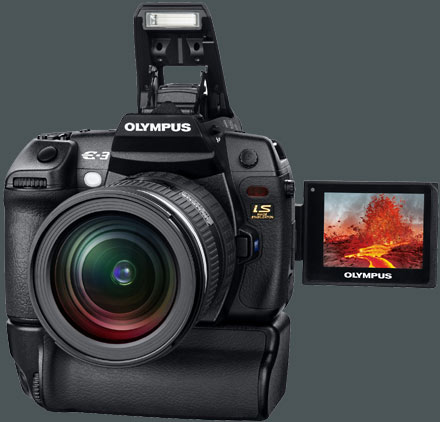

Olympus E-3
	Sensor:	10,0 MPix (4/3''  NMOS)	ISO:	100-3200
	Shutter:	1/8000-60s	Cont.:	5 frames/s
	Monitor:	2,5 Flip-up inch   (230.000)	Liveview:	Ja
	Memory:	CF, xD	Since:	10-2007
The new flagship of the Four Thirds Standard-based Olympus E-System. The E-3 features a powerful built-in image stabilisation system which is capable of up to 5 EV steps, a 10 Megapixel Live MOS sensor and a 2.5” multi-angle LCD with Live View.

Daten

Professional

Type

DSLR

Lens Mount

FT

Usable Lenses

open FT standard (Olympus-Zuiko Digital, Panasonic-Leica, Sigma FT)

Marked Launch

12/2007

Announced

10-2007

Bildstabilisator

Image Stabilizer

Yes

Type

Sensor shift

Gehäuse

Body Material

Magnesium alloy

Weatherproof

Yes

Sensor

Sensor Type

NMOS

Manufacturer

Matsushta

Format

4/3''

Total Pixels

11,8 million Pixels

Effective Pixels

10,0 million Pixels

Resolution

3648 x 2736 Pixels

Sensor Size

17,3 x 13,0 mm

Crop Factor

2,0 x

Aspect Ratio

4:3

Color Depth

12 Bit

Storage

CF, xD

File Formats

ORF(Raw), JPEG

Image Processor

TruePic III

Custom Modes

2

LiveView

Yes

LiveView AF Method

Contrast Detect or Phase Detect

Dust Reduction

Yes

Autofokus

AF Points

11

cross type

11

AF-EV

-2 - 19 EV

AF Area Mode

Automatic, Manual Single Point or Area

Focus Modes

Single, Continuous with AF oder MF frei kombinierbar

AF Assist Lamp

strobe with internal flash when raised, lamp with external flash

DOF Preview

Yes

Belichtung

Sektoren

49

Spot metering

2%

Exposure Modes

Auto (incl.ISO), P, S, A, M

Metering Range

1 - 20 EV

Exposure Compensation

+/-5 EV; 1/3, 1/2 or 1 EV steps EV

Exposure Bracketing

3 frames; 1/3, 1/2, 2/3 or 1 EV steps EV

ISO

ISO

100 - 3200 ISO

Auto-ISO

Yes

Shutter

Shutter

1/8000 - 60 s

X-sync

250 (1/4000 Super FP Mode) 1/s

Bulb

4 h

Continuous Shooting

5 fps

Selftimer

12s, 2s, anti-shock (1-30s delay)

Buffer

Buffer-JPEG

bis Karte voll@HQ 1/8 frames

Buffer-RAW

19 frames

Weißabgleich

White Balance

Auto; 7 Presets; 4 custom presets; Kelvin (2000-14000 K); Dual Sensor (external and TTL)

WB Bracketing

3 frames; 2,4 or 6 mired steps

WB Fine Tuning

2x 7 steps (red-blue; green-magenta)

Color Space

sRGB; Adobe RGB

Image Parameters

Picture Mode, Saturation, Sharpness/Contrast, BW Filter, BW Toning, Gradation

Blitz

Flash

TTL Auto FP

HotShoe

Yes

Built-in Flash

Yes

Flash-LZ

13 LZ

Flash Compensation

+/-3 EV; 1/3, 1/2 or 1 EV steps

Sucher

Coverage

100%

Magnification

1,15x

DOF Preview

Yes

Monitor

LCD Monitor

2,5 Flip-up inch - 230.000 Pixel

Top Panel LCD

Yes

Akku

Battery

Lithium-Ion

Battery Monitoring

Battery life (4 stages)

Größe

142 mm

116 mm

75 mm

Weight

800 g

Interface

USB 2.0 (Hi Speed), Video Out (NTSC / PAL), IR Remote control (optional), DC-IN, Remote terminal, PC Sync flash terminal
